Description

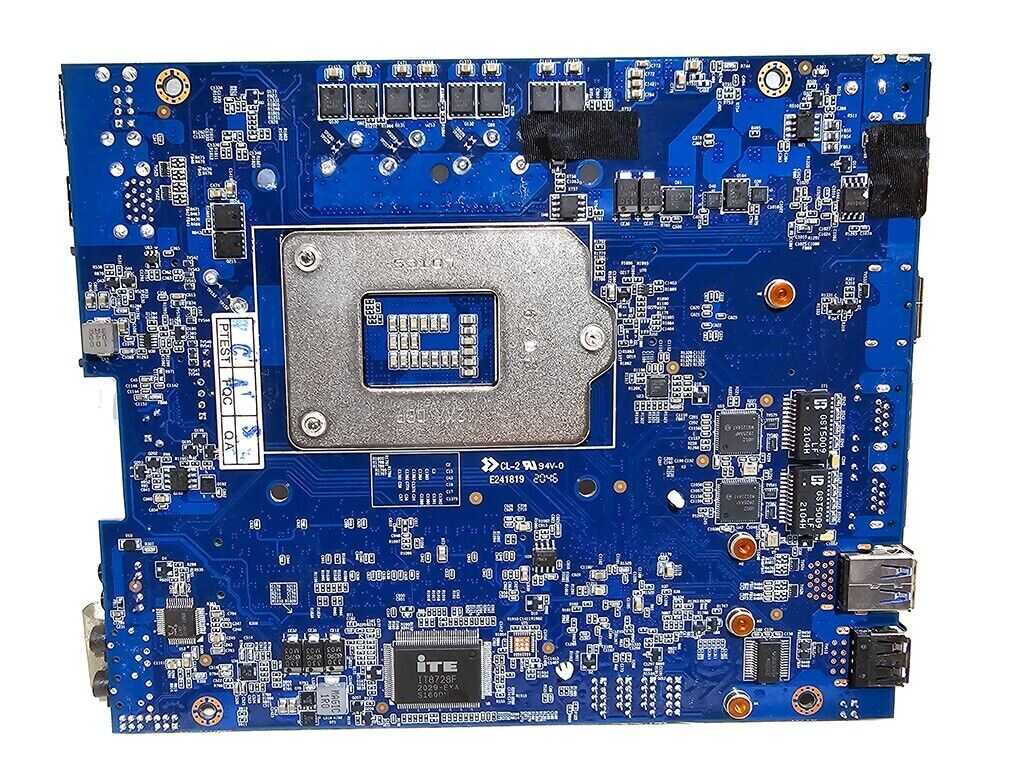

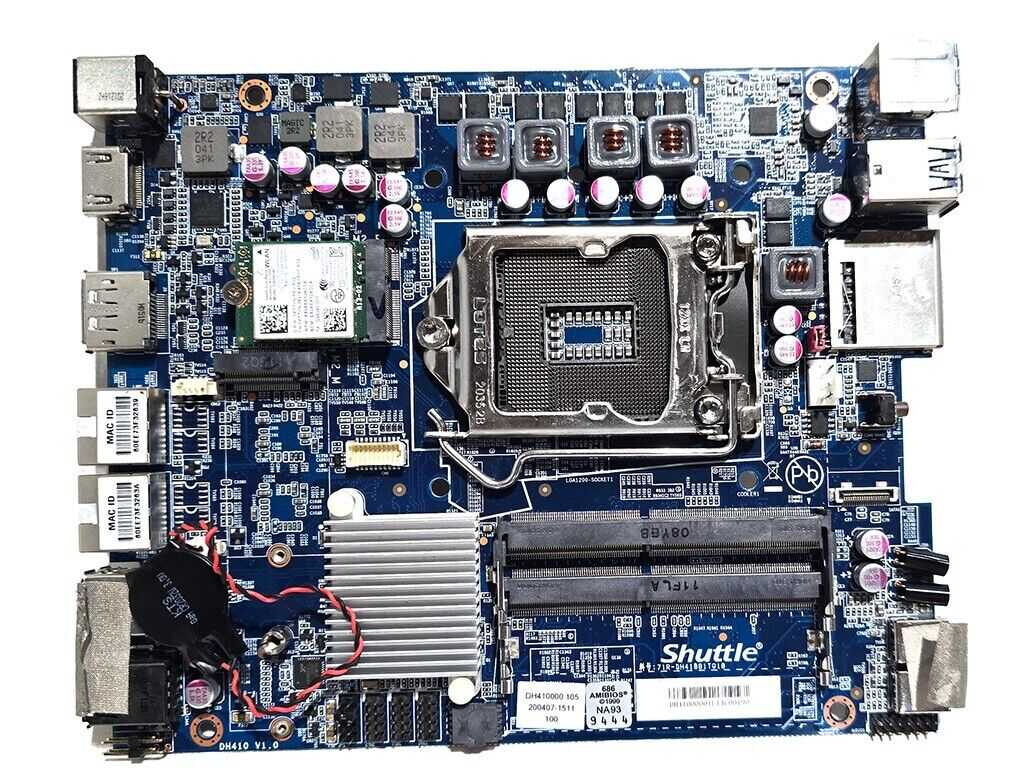

SHUTTLE Motherboard DH410, DH410000.105
| FORM FACTOR | 1.3L chassis |
|---|---|
| PROCESSOR | Support Cometlake-s LGA1200 socket Core i3/i5/i7/i9, Pentium, Celeron 65W processor |
| CHIPSET | Intel H410 Express chipset |
| MEMORY | 2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB) DDR4 2666/2933 MHz |
| VIDEO OUTPUT | HDMI 2.0 + DisplayPort, Dual video output 4K playback (Dual channel memory recommended) Integrated in CPU |
| AUDIO | Realtek ALC662 High Definition Audio |
| ETHERNET | Intel I210AT*2 Dual Lan 10Mb/s,100Mb/s,1Gb/s operation Support Wake-On-LAN function |
| STORAGE INTERFACE | SATA 6.0Gb/s interface |
| ONBOARD CONNECTORS | (1) 4pin fan connector (1) VGA(For PVG01 use) (1) 1×4 pin USB header(For WWN03 use) (1) SATA connector w/power (1) Front audio header (1) Auto power on header (1) RS232 voltage switch |
| FRONT PANEL | (2) USB 2.0 ports (2) USB 3.2 Gen1 ports (1) Microphone-In (1) Earphone-Out (1) Power-On button (1) Power LED (1) HDD LED (1) SD Card reader |
| BACK PANEL | (2) RJ45 Gigabit LAN port w/LED (Green-link/Yellow-active) (1) HDMI port (1) Display port (2) USB 2.0 ports (2) USB 3.2 Gen1 ports (1) RS232 (1) RS232/RS422/RS485 (1) External 4pin header (1) DC-in (2) Wireless Antenna fixture (1) Kensington lock |
| DRIVE BAYS | (1) 2.5″ HDD / SSD bay |
| DIMENSIONS | 190(L) x 165(W) x 43(H) mm Dimension drawing |
| POWER | 90W Power Adapter Input:100- 240V AC 19V 4.74A DC or Output:12V/7.5A DC |
| ACCESSORIES | XPC Multilanguage Quick User Guide XPC DVD Driver VESA mount VESA Screw pack Power cord Thermal Grease HDD Screw pack 90W adapter |
| EXPANSION SLOT | (1) M.2 2280 Type M key socket (1) M.2 2230 Type E key socket |
| OS SUPPORT | Windows 10 64 bit O.S Linux |
| REMARK | RS232 ports support 0/5/12V output. Voltage setting please refer to Quick Guide. |
| OPERATING TEMPERATURE | 0℃~50℃ |
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 12 × 12 × 7 in |
| Brand | |
| COMPATIBLE CPU BRAND | Intel |
| NUMBER OF MEMORY SLOTS | 2 |
| MODEL | DH410 |
| MPN | |
| Condition | |
| Condition Description |
