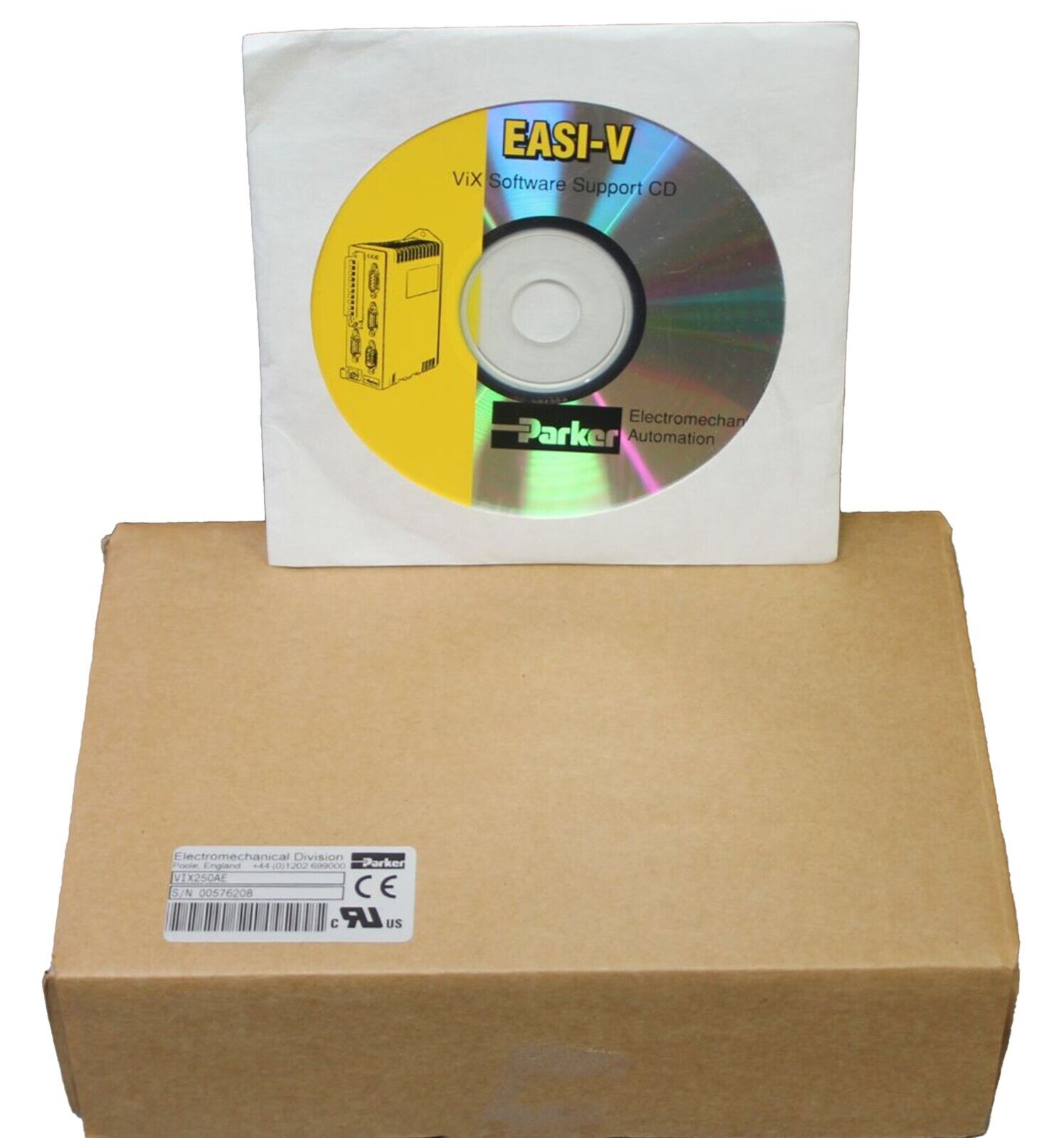

Parker VIX250AE-DRIVE / VIX250AE Servo Drive

Electrical Specifications:

• DC Supply Voltage: 24V to 80V DC
• Continuous Current: 2.5A RMS
• Peak Current: 4A (for durations less than 2 seconds)
• Logic Supply Voltage: +24V DC (acceptable range: 21V to 27V DC)
• Logic Supply Current: Nominal 250mA (excluding encoder and brake)

Inputs and Outputs:

• Digital Inputs: 5 inputs, configurable for functions such as Home, Limits, and Registration. Operates in a 5V to 24V range, software-configurable as active-low or active-high.
• Digital Outputs: 3 outputs, software-configurable as active-low (sinking, 5V-24V) or active-high (sourcing, 24V only), max 50mA per output.
• Analog Input: ±10V differential, 12-bit resolution, used for velocity or torque demand and feed rate override.
• Encoder Feedback: Supports standard quadrature encoders with 5V differential signals, up to 200kHz channel frequency, with resolutions from 500 to 5000 lines (up to 20,000 counts per revolution).
• Encoder Supply Output: 5V, max load 350mA.

Environmental Specifications:

• Operating Temperature: 0°C to 40°C with natural convection cooling, up to 50°C with forced air cooling.
• Storage Temperature: -20°C to 70°C.
• Humidity: Up to 95% non-condensing.
• Protection Class: IP20.

Mechanical Specifications:

• Dimensions: Height: 125mm, Width: 85mm, Depth: 135mm.
• Weight: Approximately 0.55 kg.
