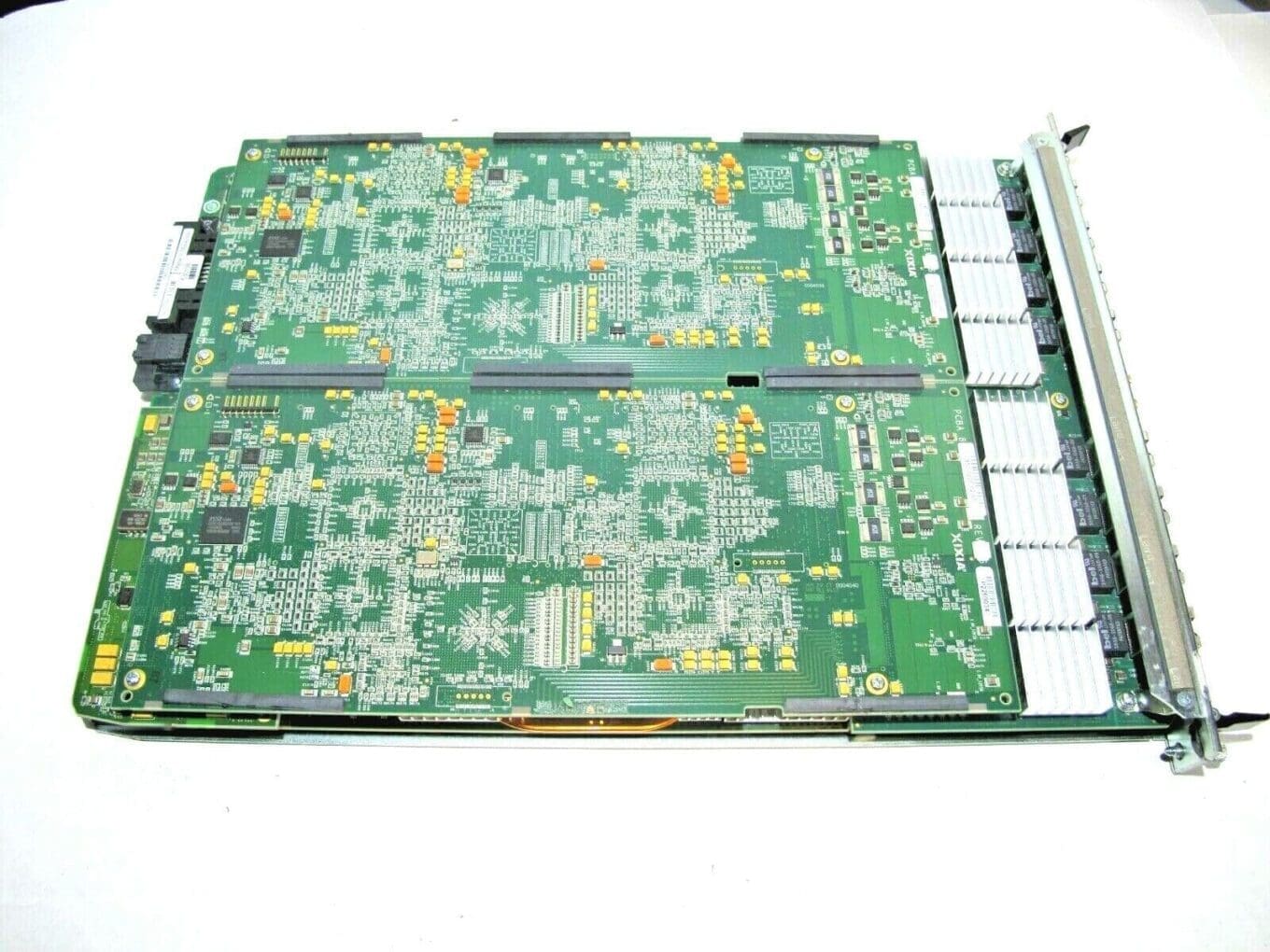

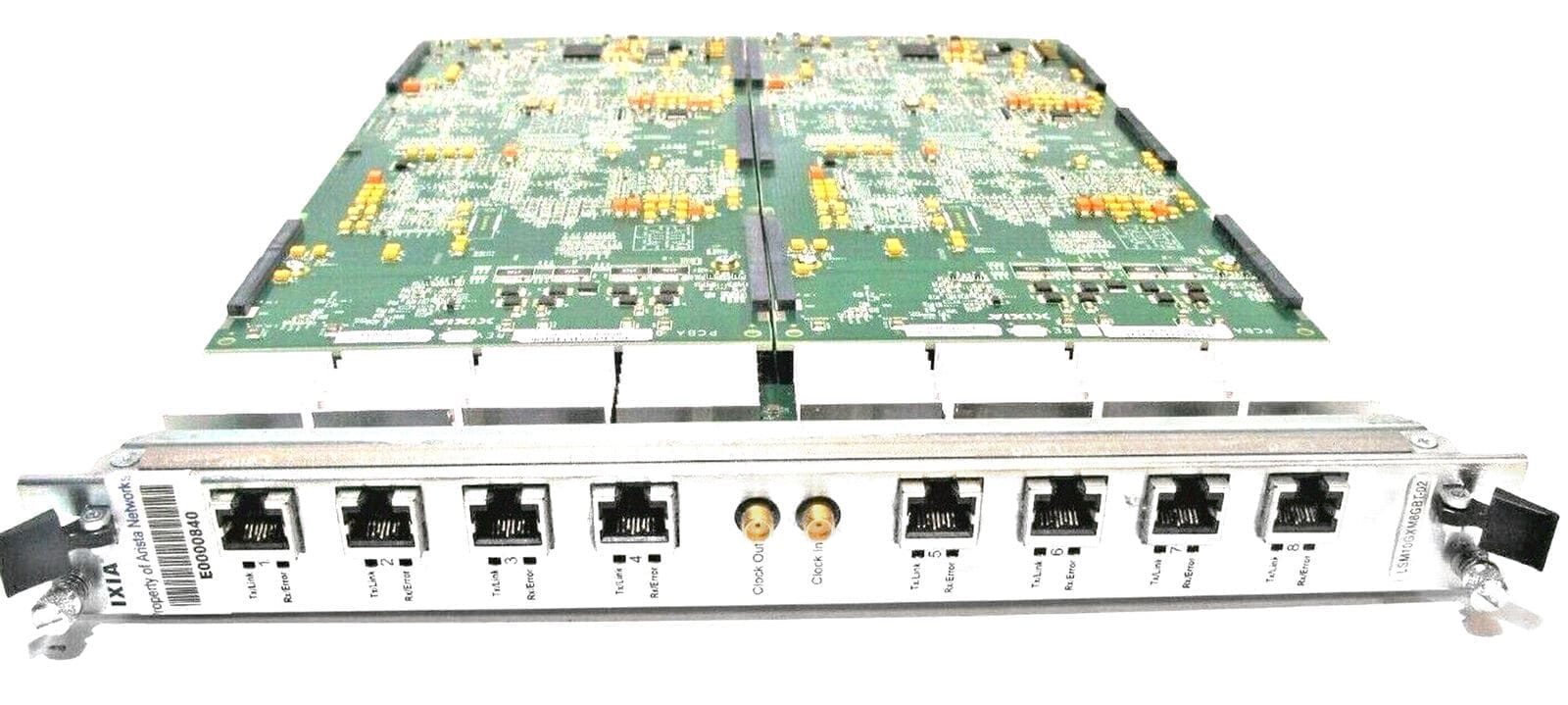

Ixia lsm10gxm8gbt-02 10 Gigabit Ngy Ethernet 8 Port Module, 800MHZ, Xtra Perf
Original price was: $5,999.99.$4,799.99Current price is: $4,799.99.
14 in stock
Description
Ixia LSM10GXM8GBT-02 10 Gigabit NGY Ethernet 8 port module, 800MHz, XTRA PERF
The architectural breakthrough of Ixia’s 10 Gigabit Ethernet LSM10GXM test load modules delivers an industry-leading, high-density, affordable layer 2 through 7, 10 Gigabit Ethernet IP test solution. The NGY family supports both low port count layer 2/3 applications with limited project budgets and highest density test lab, QA, and system test applications. NGY is perfect for both high-density converged data center infrastructure testing and high density 10 GE switch test beds. NGY load modules leverage Ixia’s converged data center test applications to NGY offer the highest port scalability, virtual scalability, protocol coverage, and the most affordable test solution available for data communications testing.
Ixia’s NGY solution provides four times the 10 GE port density of Ixia’s nearest competitor. NGY offers a greener testing alternative when used with the Ixia XM12 high performance or XG12 rackmount chassis – it requires one-quarter of the laboratory space, consumes one-half the power, and generates lower heat compared to other test solutions. NGY comes in 2-port, 4-port and 8-port configurations, with extra performance, full performance, and reduced performance models to match your requirements and budget. No other vendor’s 10 GE data communications test solution offers a wider range of price options, interfaces, and capabilities.
Ixia’s extra performance (XP) NGY load modules (LSM10GM8XP, 4XP and 2XP) deliver higher control plane performance and scalability for both layer 3 routing protocol emulation and upper layer 4-7 stateful traffic testing. The XP series of ports use an XFP interface, and provide a small premium over the full featured models by allowing you to meet your demands for high performance and scale without undue pressure on your budget.
The XP’s capabilities are mirrored in the full performance SFP+ (LSM10GXM8S, 4S, 2S) and 10GBASE-T (LSM10GXM8GBT, 4GBT, 2GBT) interface versions of the load modules.
The NGY series of modules provides the industry’s highest density 10 Gigabit Ethernet test solution, with up to 96 ports of 10GE test ports in a single XM12 High Performance chassis.
Ixia’s high density 10 Gigabit Ethernet load modules are available with a reduced performance option. The reduced performance option provides limited layer 3 routing emulation and control plane performance, coupled with complete layer 2 and 3 data plane testing. When physical port scalability and efficient use of lab facilities are critical, the LSM10GXMR8, MR4, and the highly economical MR2 reduced feature load modules are the most affordable 10 GE test solution available for manufacturing and large port count test beds.
A broad portfolio of enterprise, data center Ethernet, storage area networks, metropolitan-edge, and core network test solutions are supported, including performance, scalability, and conformance testing of layer 2-3 devices. Data and control planes may be simultaneously tested, including routing protocols and stateful testing of layer 4-7 content-aware devices and networks.
The 10 GE NGY load module family supports a comprehensive portfolio of service testing solutions for next generation service provider networks, through the IxNetwork test application including:
- Routing: RIP, RIPng, OSPFv2/v3, ISISv4/v6, EIGRP, EIGRPv6, BGP-4,BGP+
- MPLS: RSVP-TE, RSVP-TE P2MP, LDP, mLDP, PWE, L3 MPLS VPN, 6VPE, MPLS-TP, MPLS-OAM
- VPLS: 6PE, BGP Auto-Discovery with LDP FEC 129 Support, VPLS-LDP, VPLS-BGP
- High-Availability: BFD
- IP Multicast: IGMPv1/v2/v3, MLDv1/v2, PIM-SM/SSM, PIM-BSR, Multicast VPN, VPNv6
- Switching: STP/RSTP, MSTP, PVST+/RPVST+, Link Aggregation (LACP)
- Carrier Ethernet: Link OAM, CFM, Service OAM, PBT/PBB-TE, ESMC, PTP, E-LMI
- Broadband: ANCP, PPPoX, DHCPv4 Client/Server, DHCPv6 Client/Server, L2TPv2, Radius Attributes for L2TP
- Authentication: 802.1x, WebAuth, Cisco NAC
- Data Center Bridging: Priority Flow Control, FCoE/ FIP, LLDP/DCBX, VNTAG/VIC
Key Features
- Industry's highest density 10 GE test solution
- 96 ports per 10U or 11U chassis
- Significantly reduced rack space
- Reduced power consumption, and cooling requirements
- Four times the density offered by the closest competitor – 25% of the lab space required by the closest competitor
- Up to 50% less power consumption than the nearest competitor – less lab cooling required
- 96 ports per 10U or 11U chassis
- Tracks and analyzes up to 1 million flows per port for
- Real-time latency
- Inter-arrival time
- Packet loss
- Data integrity
- Sequence checking
- Comprehensive layer 2-7 testing
- Integrated data plane and control plane traffic generation and analysis
- Layer 2/3 data plane testing
- IPv4/v6 routing protocol emulation
- Bridging protocols
- FCoE, 802.1Qbb
- MPLS VPNs, MPLS-TP
- Multicast
- 1588v2, Sync-E
- Stateful Application Layer 4-7 testing
- Integrated data plane and control plane traffic generation and analysis
- Sophisticated multi-protocol encapsulation and label stacking
- IPv4/v6, VLANs, QinQ, MAC-in-MAC, GRE, MPLS, and IP over IP
| Feature | Extra Performance | Reduced Performance |
|---|---|---|
| Load Modules | LSM10GXM8XP-013 LSM10GXM4XP-013 LSM10GXM2XP-013 LSM10GXM8S-013 LSM10GXM4S-013 LSM10GXM2S-013 LSM10GXM8GBT-02 LSM10GXM4GBT-021 LSM10GXM2GBT-021 |
LSM10GXMR8-013 LSM10GXMR4-013 LSM10GXMR2-013 LSM10GXMR8S-013 LSM10GXMR4S-013 LSM10GXMR2S-013 LSM10GXMR8GBT-021 LSM10GXMR4GBT-021 LSM10GXMR2GBT-021 |
| Number of ports per module | 8 / 4 / 2 | 8 / 4 / 2 |
| Number of chassis slots per module | 1 | 1 |
| Maximum ports per chassis | ||
| - XM12 High Performance (6000W) | 96 / 48 / 24 | 96 / 48 / 24 |
| - XM12 High Performance (4000W) | 96 / 48 / 24 2 | 96 / 48 / 24 2 |
| - XM2 Desktop | 16 / 122/ 8 / 4 | 16 / 8 / 4 |
| Supported transceivers (optical and copper) | XFP, SFP+, RJ-45 10GBASE-T | XFP, SFP+, RJ-45 10GBASE-T |
| Per-port CPU speed and memory | 1 GHz, 1 GB 4 | 400 MHz / 128 MB |
| Per-port capture buffer | 512 MB | 64 MB |
| Interface protocols | 10 GE LAN/WAN | 10 GE LAN/WAN |
| Layer 2/3 routing protocol emulation | Yes | Yes |
| Layer 4-7 application traffic testing | Yes | No |
| Number of transmit flows per port (sequential values) | Billions | Billions |
| Number of transmit flows per port (arbitrary values) | 1 million | 32 K |
| Number of trackable receive flows | 1 million | 64 K |
| Number of stream definitions per port | 512 | 256 |
| In packet stream (sequential) or advanced stream (interleaved) mode, each stream definition can generate millions of unique traffic flows. | ||
| Table UDF | 1 million entries | 32k |
| Comprehensive packet editing function for emulating large numbers of sophisticated flows. Entries of up to 256 bytes, using lists of values can be specified and placed at designated offsets within a stream. Each list consists of an offset, a size and a list of values in a table format. | ||
| Packet flow statistics | Track 1 million flows | Track 64 K flows |
| Transmit engine | Wire-speed packet generation with timestamps, sequence numbers, data integrity signature, and packet group signatures | |
| Receive engine | Wire-speed packet filtering, capturing, real-time latency and inter-arrival time for each packet group, data integrity, and sequence checking | |
| User defined field features | Fixed, increment or decrement by user-defined step, value lists, range lists, cascade, random, and chained | |
| Filters | 48-bit source/destination address, 2×128-bit user-definable pattern and offset, frame length range, CRC error, data integrity error, sequence checking error (small, big, reverse) | |
| Data field per stream | Fixed, increment (byte/word), decrement (byte/word), random, repeating, user-specified | |
| Statistics and rates (counter size: 64 bits) | Link state, line speed, frames sent, valid frames received, bytes sent/received, fragments, undersize, oversize, CRC errors, VLAN tagged frames, 6 user-defined stats, capture trigger (UDS 3), capture filter (UDS 4), user-defined stat 5, user-defined stat 6, 8 QoS counters, data integrity frames, data integrity errors, sequence checking frames, sequence checking errors, ARP, and ping requests and replies | |
| Error generation | CRC (good/bad/none), undersize, oversize | |
| Latency measurements | 10 ns resolution in packet timestamp | |
| Latency self-calibration | Ability to remove inherent latency from 10GE port electronics when used with MSA-compliant 10GE transceivers | |
| Transmit line clock adjustment | Ability to adjust the parts per million (ppm) line frequency over a range of:
|
|
| IPv4, IPv6, UDP, TCP | Hardware checksum generation and verification | |
| Frame length controls | Fixed, random, weighted random, or increment by user-defined step, random, weighted random | |
| Operating temp. range | 41°F to 95°F (5°C to 35°C), ambient air6 | |
| LSM10GXM8XP-01 LSM10GXM4XP-01 LSM10GXM2XP-01 LSM10GXM8S-01 LSM10GXM4S-01 LSM10GXM2S-01 LSM10GXM8GBT-02 LSM10GXM4GBT-02 LSM10GXM2GBT-02 |
LSM10GXMR8-01 LSM10GXMR4-01 LSM10GXMR2-01 LSM10GXMR8S-01 LSM10GXMR4S-01 LSM10GXMR2S-01 LSM10GXMR8GBT-02 LSM10GXMR4GBT-02 LSM10GXMR2GBT-02 |
|---|---|
|
|
944-0078 LSM10GXM8GBT-02
LSM10GXM8GBT-02, 10 Gigabit Ethernet Load Module, 8-Port LAN, 10GBASE-T interface with 1GB RAM per port; For XM12-02 (941-0009), XM2-02 (941-0003) and XG12 (940-0005) chassis; Full L2/7 support. NOTE: Due to power constraints under certain conditions, it is RECOMMENDED that the FRU-OPTIXIAXM12-01 (943-0005) Power Supply Upgrade Kit be purchased for systems configured with XM12-01 (941-0002) chassis and this item.
944-0051 LSM10GXM8S-01
10 Gigabit Ethernet Load Module, 8-Port LAN/WAN, SFP+ interface with 1GB RAM per port; For OPTIXIAXM12-02 (941-0009) and OPTIXIAXM2-02 (941-0003) chassis; Full L2/7 support.
944-0060 LSM10GXM8XP-01
10 Gigabit Ethernet Load Module, 8-Port LAN/WAN, XFP interface, Extra-Performance with 1GB RAM per port; For OPTIXIAXM12-02 (941-0009) and OPTIXIAXM2-02 (941-0003) chassis; Full L2/7 support.
944-0079 LSM10GXMR8GBT-02
LSM10GXMR8GBT-02, 10 Gigabit Ethernet Load Module, Reduced L2/3 support with limited L3 routing, 8-Port LAN, 10GBASE-T interface; For XM12-02 (941-0009), XM2-02 (941-0003) and XG12 (940-0005) chassis. NOTE: Due to power constraints under certain conditions, it is RECOMMENDED that the FRU-OPTIXIAXM12-01 (943-0005) Power Supply Upgrade Kit be purchased for systems configured with XM12-01 (941-0002) chassis and this item.
944-0053 LSM10GXMR8S-01
10 Gigabit Ethernet Load Module, Reduced L2/3 support with limited L3 routing, 8-Port LAN/WAN, SFP+ interface; For OPTIXIAXM12-02 (941-0009) and OPTIXIAXM2-02 (941-0003) chassis.
944-0044 LSM10GXMR8-01
10 Gigabit Ethernet Load Module, Reduced L2/3 support with limited L3 routing, 8-Port LAN/WAN XFP interface; For OPTIXIAXM12-02 (941-0009) and OPTIXIAXM2-02 (941-0003) chassis.
944-0076 LSM10GXM4GBT-01
1LSM10GXM4GBT-02, 10 Gigabit Ethernet Load Module, 4-Port LAN, 10GBASE-T interface with 1GB RAM per port; For XM12-02 (941-0009), XM2-02 (941-0003) and XG12 (940-0005)chassis; Full L2/7 support.
944-0050 LSM10GXM4S-01
10 Gigabit Ethernet Load Module, 4-Port LAN/WAN, SFP+ interface with 1GB RAM per port; For OPTIXIAXM12-02 (941-0009) and OPTIXIAXM2-02 (941-0003) chassis; Full L2/7 support.
944-0059 LSM10GXM4XP-01
10 Gigabit Ethernet Load Module, 4-Port LAN/WAN, XFP interface, Extra-Performance with 1GB RAM per port; For OPTIXIAXM12-02 (941-0009) and OPTIXIAXM2-02 (941-0003) chassis; Full L2/7 support.
944-0077 LSM10GXMR4GBT-01
LSM10GXMR4GBT-01, 10 Gigabit Ethernet Load Module, Reduced L2/3 support with limited L3 routing, 4-Port LAN, 10GBASE-T interface; For XM12-02 (941-0009), XM2-02 (941-0003) and XG12 (940-0005) chassis.
944-0052 LSM10GXMR4S-01
10 Gigabit Ethernet Load Module, Reduced L2/3 support with limited L3 routing, 4-Port LAN/WAN, SFP+ interface; For OPTIXIAXM12-02 (941-0009) and OPTIXIAXM2-02 (941-0003) chassis.
944-0043 LSM10GXMR4-01
10 Gigabit Ethernet Load Module, Reduced L2/3 support with limited L3 routing, 4-Port LAN/WAN; XFP interface, for OPTIXIAXM12-02 (941-0009) and OPTIXIAXM2-02 (941-0003) chassis.
944-0074 LSM10GXM2GBT-01
LSM10GXM2GBT-02, 10 Gigabit Ethernet Load Module, 2-Port LAN, 10GBASE-T interface with 1GB RAM per port; For XM12-02 (941-0009), XM2-02 (941-0003) and XG12 (940-0005) chassis; Full L2/7 support.
944-0054 LSM10GXM2S-01 10
Gigabit Ethernet Load Module, 2-Port LAN/WAN, SFP+ interface with 1GB RAM per port; For OPTIXIAXM12-02 (941-0009) and OPTIXIAXM2-02 (941-0003) chassis; Full L2/7 support.
944-0048 LSM10GXM2XP-01 10
10 Gigabit Ethernet Load Module, 2-Port LAN/WAN, XFP interface, Extra-Performance with 1GB RAM per port; For OPTIXIAXM12-02 (941-0009) and OPTIXIAXM2-02 (941-0003) chassis; Full L2/7 support.
944-0075 LSM10GXMR2GBT-01
LSM10GXMR2GBT-02, 10 Gigabit Ethernet Load Module, Reduced L2/3 support with limited L3 routing, 2-Port LAN, 10GBASE-T interface; For XM12-02 (941-0009), XM2-02 (941-0003) and XG12 (940-0005) chassis.
944-0055 LSM10GXMR2S-01
10 Gigabit Ethernet Load Module, Reduced L2/3 support with limited L3 routing, 2-Port LAN/WAN, SFP+ interface; For OPTIXIAXM12-02 (941-0009) and OPTIXIAXM2-02 (941-0003) chassis.
944-0049 LSM10GXMR2-01
10 Gigabit Ethernet Load Module, Reduced L2/3 support with limited L3 routing, 2-Port LAN/WAN, XFP interface; For OPTIXIAXM12-02 (941-0009) and OPTIXIAXM2-02 (941-0003) chassis.
944-0064 SW-FCoE-OPT8
SW-FCoE-OPT8, Configuration Option, Fibre Channel over Ethernet (FCoE) Option for 8-port NGY, License per module; Supported on Extra Performance, (XP), full-featured, and reduced-feature performance load modules; REQUIRES Purchase of a supported load module [see 944-0051 (LSM10GXM8S-01), 944-0060 (LSM10GXM8XP-01), 944-0040 (LSM10GXM8-01), 944-0053 (LSM10GXMR8S-01), 944-0044 (LSM10GXMR8-01), 944-0078 (LSM10GXM8GBT-01), or 944-0079 (LSM10GXMR8GBT-01)]
944-0063 SW-FCoE-OPT4
SW-FCoE-OPT4, Configuration Option, Fibre Channel over Ethernet (FCoE) Option for 4-port NGY, License per module; Supported on Extra Performance, (XP), full-featured, and reduced-feature performance load modules; REQUIRES Purchase of a supported load module [see 944-0050 (LSM10GXM4S-01), 944-0059 (LSM10GXM4XP-01), 944-0039 (LSM10GXM4-01), 944-0052 (LSM10GXMR4S-01), 944-0043 (LSM10GXMR4-01), 944-0076 (LSM10GXM4GBT-01), or 944-0077 (LSM10GXMR4GBT-01)]
944-0056 SW-FCoE-OPT2
SW-FCoE-OPT2, Configuration Option, Fibre Channel over Ethernet (FCoE) Option for 2-port NGY, License per module; Supported on Extra Performance, (XP), full-featured and reduced-feature performance load modules; REQUIRES purchase of a supported load module [see 944-0054 (LSM10GXM2S-01), 944-0048 (LSM10GXM2XP-01), 944-0055 (LSM10GXMR2S-01), 944-0049 (LSM10GXMR2-01), 944-0074 (LSM10GXM2GBT-01), or 944-0075 (LSM10GXMR2GBT-01)]
NGY Transceiver options:
NGY offers the following XFP transceiver options:
- 948-0003 XFP-850, Accessory, XFP Transceiver for 10 Gigabit Ethernet LAN/WAN load modules with pluggable XFP interface, 850nm
- XFP-1310 Accessory, XFP Transceiver for 10 Gigabit Ethernet LAN/WAN load modules with pluggable XFP interface, 1310nm
- XFP-1550 Accessory, XFP transceiver for 10 Gigabit Ethernet LAN/WAN load modules with pluggable XFP interface, 1550nm
- 948-0011 XFP-CX4, Accessory, XFP Transceiver for 10 Gigabit Ethernet LAN/WAN load modules, 10GBASE-CX47
NGY SFP+ Transceiver and Direct Attach Cable options:
NGY offers the following SFP+ transceiver and Direct Attach Cable options:
- 948-0013 SFP+10GBASE-SR/SW, Accessory, SFP+ Transceiver for 10 Gigabit Ethernet LAN/WAN load modules with pluggable SFP+ interface, 850nm
- 948-0014 SFP+10GBASE-LR/LW, Accessory, SFP+ Transceiver for 10 Gigabit Ethernet LAN/WAN load modules with pluggable SFP+ interface, 1310nm
- 948-0015 SFP+10GBASE-LRM, Accessory, SFP+ Transceiver for 10 Gigabit Ethernet LAN/WAN load modules with pluggable SFP+ interface, For multimode fiber, 1300nm8
- 948-0016 SFP+10GSFP+Cu, Accessory, passive, Direct Attach Cable Assembly for 10 Gigabit Ethernet LAN/WAN load modules with pluggable SFP+ interface, copper twinaxial, 3 meter length
1All NGY 10GBASE-T load modules with the “-02_ model number suffix require IxOS 6.30EA SP1 as the minimum version: LSM10GXM2GBT-02, (944-0074), LSM10GXMR2GBT-02, (944-0075), LSM10GXM4GBT-02, (944-0076), LSM10GXMR4GBT-02, (944-0077), LSM10GXM8GBT-02, (944-0078), LSM10GXMR8GBT-02, (944-0079.
2 XM12 High Performance chassis (941-0009) is required for 80 or more ports of 10 GbE NGY XFP or SFP+ 8-port, load modules to be installed in a single chassis. A field replaceable power supply upgrade kit (943-0005) is available for the XM12 chassis (941-0002) to convert it to the high-performance version. Up to ten 8-port NGY 10GBASE-T full performance load modules are supported in an XM12 High Performance chassis, and up to eight 8-port NGY 10GBASE-T full performance load modules are supported in a standard XM12 chassis). The XM2 chassis (941-0003) supports up to twelve ports of 10GBASE-T full performance load modules.
3The LSM10GXM8XP/4XP/2XP load modules do not support transceivers that consume more than 2.5 watts of power per port. The LSM10GXM8S/4S/2S load modules do not support transceivers that consume more than 2.0 watts of power per port.
4 The LSM10GXM8XP, LSM10GXM8S, and LSM10GXM8GBT use a high performance 800MHz processor with additional layer 2 cache.
5For 10GBASE-T interfaces on NGY the ppm does change the data rate, but does not change the bit period due to phy chip limitations.
6 When an NGY load module is installed in an XM12 chassis, the maximum operating temperature of the chassis is 35oC (ambient air).
7 The 948-0011 XFP-CX4 transceiver for 10GBASE-CX4 may only be used in every other port of an NGY load module due to mechanical port-to-port centerline layout restrictions in the module faceplate.
8 The 948-0015 SFP+ transceiver for 10GBASE-LRM only supports 10 Gigabit Ethernet in LAN mode.
This material is for informational purposes only and subject to change without notice. It describes Ixia's present plans to develop and make available to its customers certain products, features and capabilities. Ixia is only obligated to provide those deliverables specifically included in a written agreement between Ixia and the customer.

ATTENTION PLEASE!
IXIA CLIENT SOFTWARE: The software provided on all Ixia items is the server software only. The server software has ixserver and ixplorer as the only desktop applications. The server application licensed features are accessed through various Ixia client applications that interact with the chassis server.
You can download the Ixia client applications if you have online access with Ixia. These client applications are typically free from Ixia but you will need an Ixia logon account. We offer a selection of these applications to our customers at no charge but the selection is incomplete. We do not sell these with the servers as a package. Client application needs are the buyers responsibility, we do not guarantee that we will have all your needs though we will try to assist you if we can. We only guarantee the server applications as itemized in the listings.
In a single user environment you can set the client side GUI interface on a external PC or you can set them up on an application server when using a chassis in a multi-user environment to access and configure all the sub-license features included in a listing. Multiple chassis can be accessed in the client applications environment which allows you to use the licensed features of several chassis all at once in one interface.
WHAT YOU SEE IS WHAT YOU GET… What is included in this listing will be shown in the pictures. If you do not see an accessory in the pictures and it is not specifically listed as included in the condition description or the listing description, the accessory is not included. Please read the descriptions completely for exceptions on this.
GENERAL REFUND POLICY: You are covered with a full money back guarantee for at least 30 days or longer as specified in the listing, unless an item is indicated as "Sold as is – no returns". We go beyond that by promising that if you are dissatisfied for any reason and if we cannot fix this with you, we will give you 100% of your purchase price back as a cash refund. This will include the original shipping costs if your dissatisfaction is due to an issue with the item you bought being "Not as described".
ALL WE ASK IS THAT YOU CONTACT US FIRST AND GIVE US A CHANCE TO WORK THINGS OUT WITH YOU. PLEASE DO NOT LEAVE NEGATIVE FEEDBACK IF YOU HAVE NOT FIRST CONTACTED US TO FIX WHATEVER ISSUE YOU HAVE.
WE SHIP WORLD WIDE!
Store policies:
Shipping
Also please note that we may take up to 3 business days to ship from the time you paid for your order. Also, please keep in mind that weekends are not counted. So, if you place an order Friday night, we may not get it out until the following Wednesday (worst case scenario) though we ship as soon as we can. We also reserve the right to change the method of shipping selected at the time of purchase to an equivalent or better delivery service that best fits the item being delivered.
If you need a faster service, please tell us so we can adjust our priorities but please don't expect expedited service unless you ask us to do so first as our commitment is 3 days if you have not specifically asked for faster shipping.
We ship worldwide .. Some items may take up to 5 days to palletize and ship
Please note that the us mail (USPS) may not be an acceptable choice for international shipping due to package size and weight restrictions and export documentation requirements. If you chose USPS for your international shipment, you may be told you have to select FedEx or UPS or even DHL at a higher price due to the restrictions when using USPS. If you have a question on this, please confirm your shipping choice with us before placing your order.
Export Compliance Notice:
Our products are subject to U.S. export regulations governed by the Export Administration Regulations (EAR), under the oversight of the Bureau of Industry and Security (BIS) and the U.S. Census Bureau. We do not ship to locations in Country Group E. Please note that it may take up to 30 days to determine the Export Control Classification Number (ECCN) for our products. If an export license is required, the licensing process may take an additional 30-90 days.
To comply with U.S. Department of Commerce and U.S. Department of State export control laws, we require a written statement detailing the ultimate end user, the intended end use of each product, and the buyer's agreement to adhere to the EAR. You will receive an email with the necessary documentation to complete your order. Please be aware that your order cannot be processed until all required information is provided.
Returns
Unless indicated as "Sold as is no returns", you will have either 30 or 60 days to return your purchase, for any reason, if you are not 100% satisfied with your purchase. You can return the product for a full refund or exchange the product for another item, be it similar or not. The period of 30 or 60 days is listed for each item on the items listing page.
Any product you return must be in the same condition you received it and in the original packaging. All items are guaranteed to be "as described". Any item you feel is not as described in the listing; you can return it at our expense for a full refund regardless if the item is listed "as is no returns".
Warranty
Unless indicated as "Sold as is no returns", you will have either 30 or 60 days to return your purchase for a warranty claim at our expense for a full refund, a repair or a replacement. Some higher value items we will warranty beyond ebays 60 day maximum limit for normal listing. If you are interested in extending your warranty, ask us at the time of your purchase.
Data Privacy
We do not keep or share your information anywhere. Your information resides only on ebay and is only available to us for a limited time while we are interacting with you on an inquiry, order or a return, per ebays usage policies.
QUALITY CONTROL
Electronics in general, where possible items are tested. The value of an item greatly contributes to the amount or effort put into testing. It just isn't possible to test many low value items due to the time required and the expenses associated with it. Items that are not specifically tested in detail are visually inspected and reviewed for their operational status. When purchasing recycled items, it is reasonable to have varying quality and occasional failures. Just remember you are covered with a money back guarantee on most items. We want you to be happy above all other considerations.
The architectural breakthrough of Ixia’s 10 Gigabit Ethernet LSM10GXM test load modules delivers an industry-leading, high-density, affordable layer 2 through 7, 10 Gigabit Ethernet IP test solution. The NGY family supports both low port count layer 2/3 applications with limited project budgets and highest density test lab, QA, and system test applications. NGY is perfect for both high-density converged data center infrastructure testing and high density 10 GE switch test beds. NGY load modules leverage Ixia’s converged data center test applications to NGY offer the highest port scalability, virtual scalability, protocol coverage, and the most affordable test solution available for data communications testing.
Ixia’s NGY solution provides four times the 10 GE port density of Ixia’s nearest competitor. NGY offers a greener testing alternative when used with the Ixia XM12 high performance or XG12 rackmount chassis – it requires one-quarter of the laboratory space, consumes one-half the power, and generates lower heat compared to other test solutions. NGY comes in 2-port, 4-port and 8-port configurations, with extra performance, full performance, and reduced performance models to match your requirements and budget. No other vendor’s 10 GE data communications test solution offers a wider range of price options, interfaces, and capabilities.
Ixia’s extra performance (XP) NGY load modules (LSM10GM8XP, 4XP and 2XP) deliver higher control plane performance and scalability for both layer 3 routing protocol emulation and upper layer 4-7 stateful traffic testing. The XP series of ports use an XFP interface, and provide a small premium over the full featured models by allowing you to meet your demands for high performance and scale without undue pressure on your budget.
The XP’s capabilities are mirrored in the full performance SFP+ (LSM10GXM8S, 4S, 2S) and 10GBASE-T (LSM10GXM8GBT, 4GBT, 2GBT) interface versions of the load modules.
The NGY series of modules provides the industry’s highest density 10 Gigabit Ethernet test solution, with up to 96 ports of 10GE test ports in a single XM12 High Performance chassis.
Ixia’s high density 10 Gigabit Ethernet load modules are available with a reduced performance option. The reduced performance option provides limited layer 3 routing emulation and control plane performance, coupled with complete layer 2 and 3 data plane testing. When physical port scalability and efficient use of lab facilities are critical, the LSM10GXMR8, MR4, and the highly economical MR2 reduced feature load modules are the most affordable 10 GE test solution available for manufacturing and large port count test beds.
A broad portfolio of enterprise, data center Ethernet, storage area networks, metropolitan-edge, and core network test solutions are supported, including performance, scalability, and conformance testing of layer 2-3 devices. Data and control planes may be simultaneously tested, including routing protocols and stateful testing of layer 4-7 content-aware devices and networks.
The 10 GE NGY load module family supports a comprehensive portfolio of service testing solutions for next generation service provider networks, through the IxNetwork test application including:
- Routing: RIP, RIPng, OSPFv2/v3, ISISv4/v6, EIGRP, EIGRPv6, BGP-4,BGP+
- MPLS: RSVP-TE, RSVP-TE P2MP, LDP, mLDP, PWE, L3 MPLS VPN, 6VPE, MPLS-TP, MPLS-OAM
- VPLS: 6PE, BGP Auto-Discovery with LDP FEC 129 Support, VPLS-LDP, VPLS-BGP
- High-Availability: BFD
- IP Multicast: IGMPv1/v2/v3, MLDv1/v2, PIM-SM/SSM, PIM-BSR, Multicast VPN, VPNv6
- Switching: STP/RSTP, MSTP, PVST+/RPVST+, Link Aggregation (LACP)
- Carrier Ethernet: Link OAM, CFM, Service OAM, PBT/PBB-TE, ESMC, PTP, E-LMI
- Broadband: ANCP, PPPoX, DHCPv4 Client/Server, DHCPv6 Client/Server, L2TPv2, Radius Attributes for L2TP
- Authentication: 802.1x, WebAuth, Cisco NAC
- Data Center Bridging: Priority Flow Control, FCoE/ FIP, LLDP/DCBX, VNTAG/VIC
Key Features
- Industry's highest density 10 GE test solution
- 96 ports per 10U or 11U chassis
- Significantly reduced rack space
- Reduced power consumption, and cooling requirements
- Four times the density offered by the closest competitor – 25% of the lab space required by the closest competitor
- Up to 50% less power consumption than the nearest competitor – less lab cooling required
- 96 ports per 10U or 11U chassis
- Tracks and analyzes up to 1 million flows per port for
- Real-time latency
- Inter-arrival time
- Packet loss
- Data integrity
- Sequence checking
- Comprehensive layer 2-7 testing
- Integrated data plane and control plane traffic generation and analysis
- Layer 2/3 data plane testing
- IPv4/v6 routing protocol emulation
- Bridging protocols
- FCoE, 802.1Qbb
- MPLS VPNs, MPLS-TP
- Multicast
- 1588v2, Sync-E
- Stateful Application Layer 4-7 testing
- Integrated data plane and control plane traffic generation and analysis
- Sophisticated multi-protocol encapsulation and label stacking
- IPv4/v6, VLANs, QinQ, MAC-in-MAC, GRE, MPLS, and IP over IP
| Feature | Extra Performance | Reduced Performance |
|---|---|---|
| Load Modules | LSM10GXM8XP-013 LSM10GXM4XP-013 LSM10GXM2XP-013 LSM10GXM8S-013 LSM10GXM4S-013 LSM10GXM2S-013 LSM10GXM8GBT-02 LSM10GXM4GBT-021 LSM10GXM2GBT-021 |
LSM10GXMR8-013 LSM10GXMR4-013 LSM10GXMR2-013 LSM10GXMR8S-013 LSM10GXMR4S-013 LSM10GXMR2S-013 LSM10GXMR8GBT-021 LSM10GXMR4GBT-021 LSM10GXMR2GBT-021 |
| Number of ports per module | 8 / 4 / 2 | 8 / 4 / 2 |
| Number of chassis slots per module | 1 | 1 |
| Maximum ports per chassis | ||
| - XM12 High Performance (6000W) | 96 / 48 / 24 | 96 / 48 / 24 |
| - XM12 High Performance (4000W) | 96 / 48 / 24 2 | 96 / 48 / 24 2 |
| - XM2 Desktop | 16 / 122/ 8 / 4 | 16 / 8 / 4 |
| Supported transceivers (optical and copper) | XFP, SFP+, RJ-45 10GBASE-T | XFP, SFP+, RJ-45 10GBASE-T |
| Per-port CPU speed and memory | 1 GHz, 1 GB 4 | 400 MHz / 128 MB |
| Per-port capture buffer | 512 MB | 64 MB |
| Interface protocols | 10 GE LAN/WAN | 10 GE LAN/WAN |
| Layer 2/3 routing protocol emulation | Yes | Yes |
| Layer 4-7 application traffic testing | Yes | No |
| Number of transmit flows per port (sequential values) | Billions | Billions |
| Number of transmit flows per port (arbitrary values) | 1 million | 32 K |
| Number of trackable receive flows | 1 million | 64 K |
| Number of stream definitions per port | 512 | 256 |
| In packet stream (sequential) or advanced stream (interleaved) mode, each stream definition can generate millions of unique traffic flows. | ||
| Table UDF | 1 million entries | 32k |
| Comprehensive packet editing function for emulating large numbers of sophisticated flows. Entries of up to 256 bytes, using lists of values can be specified and placed at designated offsets within a stream. Each list consists of an offset, a size and a list of values in a table format. | ||
| Packet flow statistics | Track 1 million flows | Track 64 K flows |
| Transmit engine | Wire-speed packet generation with timestamps, sequence numbers, data integrity signature, and packet group signatures | |
| Receive engine | Wire-speed packet filtering, capturing, real-time latency and inter-arrival time for each packet group, data integrity, and sequence checking | |
| User defined field features | Fixed, increment or decrement by user-defined step, value lists, range lists, cascade, random, and chained | |
| Filters | 48-bit source/destination address, 2×128-bit user-definable pattern and offset, frame length range, CRC error, data integrity error, sequence checking error (small, big, reverse) | |
| Data field per stream | Fixed, increment (byte/word), decrement (byte/word), random, repeating, user-specified | |
| Statistics and rates (counter size: 64 bits) | Link state, line speed, frames sent, valid frames received, bytes sent/received, fragments, undersize, oversize, CRC errors, VLAN tagged frames, 6 user-defined stats, capture trigger (UDS 3), capture filter (UDS 4), user-defined stat 5, user-defined stat 6, 8 QoS counters, data integrity frames, data integrity errors, sequence checking frames, sequence checking errors, ARP, and ping requests and replies | |
| Error generation | CRC (good/bad/none), undersize, oversize | |
| Latency measurements | 10 ns resolution in packet timestamp | |
| Latency self-calibration | Ability to remove inherent latency from 10GE port electronics when used with MSA-compliant 10GE transceivers | |
| Transmit line clock adjustment | Ability to adjust the parts per million (ppm) line frequency over a range of:
|
|
| IPv4, IPv6, UDP, TCP | Hardware checksum generation and verification | |
| Frame length controls | Fixed, random, weighted random, or increment by user-defined step, random, weighted random | |
| Operating temp. range | 41°F to 95°F (5°C to 35°C), ambient air6 | |
| LSM10GXM8XP-01 LSM10GXM4XP-01 LSM10GXM2XP-01 LSM10GXM8S-01 LSM10GXM4S-01 LSM10GXM2S-01 LSM10GXM8GBT-02 LSM10GXM4GBT-02 LSM10GXM2GBT-02 |
LSM10GXMR8-01 LSM10GXMR4-01 LSM10GXMR2-01 LSM10GXMR8S-01 LSM10GXMR4S-01 LSM10GXMR2S-01 LSM10GXMR8GBT-02 LSM10GXMR4GBT-02 LSM10GXMR2GBT-02 |
|---|---|
|
|
944-0078 LSM10GXM8GBT-02
LSM10GXM8GBT-02, 10 Gigabit Ethernet Load Module, 8-Port LAN, 10GBASE-T interface with 1GB RAM per port; For XM12-02 (941-0009), XM2-02 (941-0003) and XG12 (940-0005) chassis; Full L2/7 support. NOTE: Due to power constraints under certain conditions, it is RECOMMENDED that the FRU-OPTIXIAXM12-01 (943-0005) Power Supply Upgrade Kit be purchased for systems configured with XM12-01 (941-0002) chassis and this item.
944-0051 LSM10GXM8S-01
10 Gigabit Ethernet Load Module, 8-Port LAN/WAN, SFP+ interface with 1GB RAM per port; For OPTIXIAXM12-02 (941-0009) and OPTIXIAXM2-02 (941-0003) chassis; Full L2/7 support.
944-0060 LSM10GXM8XP-01
10 Gigabit Ethernet Load Module, 8-Port LAN/WAN, XFP interface, Extra-Performance with 1GB RAM per port; For OPTIXIAXM12-02 (941-0009) and OPTIXIAXM2-02 (941-0003) chassis; Full L2/7 support.
944-0079 LSM10GXMR8GBT-02
LSM10GXMR8GBT-02, 10 Gigabit Ethernet Load Module, Reduced L2/3 support with limited L3 routing, 8-Port LAN, 10GBASE-T interface; For XM12-02 (941-0009), XM2-02 (941-0003) and XG12 (940-0005) chassis. NOTE: Due to power constraints under certain conditions, it is RECOMMENDED that the FRU-OPTIXIAXM12-01 (943-0005) Power Supply Upgrade Kit be purchased for systems configured with XM12-01 (941-0002) chassis and this item.
944-0053 LSM10GXMR8S-01
10 Gigabit Ethernet Load Module, Reduced L2/3 support with limited L3 routing, 8-Port LAN/WAN, SFP+ interface; For OPTIXIAXM12-02 (941-0009) and OPTIXIAXM2-02 (941-0003) chassis.
944-0044 LSM10GXMR8-01
10 Gigabit Ethernet Load Module, Reduced L2/3 support with limited L3 routing, 8-Port LAN/WAN XFP interface; For OPTIXIAXM12-02 (941-0009) and OPTIXIAXM2-02 (941-0003) chassis.
944-0076 LSM10GXM4GBT-01
1LSM10GXM4GBT-02, 10 Gigabit Ethernet Load Module, 4-Port LAN, 10GBASE-T interface with 1GB RAM per port; For XM12-02 (941-0009), XM2-02 (941-0003) and XG12 (940-0005)chassis; Full L2/7 support.
944-0050 LSM10GXM4S-01
10 Gigabit Ethernet Load Module, 4-Port LAN/WAN, SFP+ interface with 1GB RAM per port; For OPTIXIAXM12-02 (941-0009) and OPTIXIAXM2-02 (941-0003) chassis; Full L2/7 support.
944-0059 LSM10GXM4XP-01
10 Gigabit Ethernet Load Module, 4-Port LAN/WAN, XFP interface, Extra-Performance with 1GB RAM per port; For OPTIXIAXM12-02 (941-0009) and OPTIXIAXM2-02 (941-0003) chassis; Full L2/7 support.
944-0077 LSM10GXMR4GBT-01
LSM10GXMR4GBT-01, 10 Gigabit Ethernet Load Module, Reduced L2/3 support with limited L3 routing, 4-Port LAN, 10GBASE-T interface; For XM12-02 (941-0009), XM2-02 (941-0003) and XG12 (940-0005) chassis.
944-0052 LSM10GXMR4S-01
10 Gigabit Ethernet Load Module, Reduced L2/3 support with limited L3 routing, 4-Port LAN/WAN, SFP+ interface; For OPTIXIAXM12-02 (941-0009) and OPTIXIAXM2-02 (941-0003) chassis.
944-0043 LSM10GXMR4-01
10 Gigabit Ethernet Load Module, Reduced L2/3 support with limited L3 routing, 4-Port LAN/WAN; XFP interface, for OPTIXIAXM12-02 (941-0009) and OPTIXIAXM2-02 (941-0003) chassis.
944-0074 LSM10GXM2GBT-01
LSM10GXM2GBT-02, 10 Gigabit Ethernet Load Module, 2-Port LAN, 10GBASE-T interface with 1GB RAM per port; For XM12-02 (941-0009), XM2-02 (941-0003) and XG12 (940-0005) chassis; Full L2/7 support.
944-0054 LSM10GXM2S-01 10
Gigabit Ethernet Load Module, 2-Port LAN/WAN, SFP+ interface with 1GB RAM per port; For OPTIXIAXM12-02 (941-0009) and OPTIXIAXM2-02 (941-0003) chassis; Full L2/7 support.
944-0048 LSM10GXM2XP-01 10
10 Gigabit Ethernet Load Module, 2-Port LAN/WAN, XFP interface, Extra-Performance with 1GB RAM per port; For OPTIXIAXM12-02 (941-0009) and OPTIXIAXM2-02 (941-0003) chassis; Full L2/7 support.
944-0075 LSM10GXMR2GBT-01
LSM10GXMR2GBT-02, 10 Gigabit Ethernet Load Module, Reduced L2/3 support with limited L3 routing, 2-Port LAN, 10GBASE-T interface; For XM12-02 (941-0009), XM2-02 (941-0003) and XG12 (940-0005) chassis.
944-0055 LSM10GXMR2S-01
10 Gigabit Ethernet Load Module, Reduced L2/3 support with limited L3 routing, 2-Port LAN/WAN, SFP+ interface; For OPTIXIAXM12-02 (941-0009) and OPTIXIAXM2-02 (941-0003) chassis.
944-0049 LSM10GXMR2-01
10 Gigabit Ethernet Load Module, Reduced L2/3 support with limited L3 routing, 2-Port LAN/WAN, XFP interface; For OPTIXIAXM12-02 (941-0009) and OPTIXIAXM2-02 (941-0003) chassis.
944-0064 SW-FCoE-OPT8
SW-FCoE-OPT8, Configuration Option, Fibre Channel over Ethernet (FCoE) Option for 8-port NGY, License per module; Supported on Extra Performance, (XP), full-featured, and reduced-feature performance load modules; REQUIRES Purchase of a supported load module [see 944-0051 (LSM10GXM8S-01), 944-0060 (LSM10GXM8XP-01), 944-0040 (LSM10GXM8-01), 944-0053 (LSM10GXMR8S-01), 944-0044 (LSM10GXMR8-01), 944-0078 (LSM10GXM8GBT-01), or 944-0079 (LSM10GXMR8GBT-01)]
944-0063 SW-FCoE-OPT4
SW-FCoE-OPT4, Configuration Option, Fibre Channel over Ethernet (FCoE) Option for 4-port NGY, License per module; Supported on Extra Performance, (XP), full-featured, and reduced-feature performance load modules; REQUIRES Purchase of a supported load module [see 944-0050 (LSM10GXM4S-01), 944-0059 (LSM10GXM4XP-01), 944-0039 (LSM10GXM4-01), 944-0052 (LSM10GXMR4S-01), 944-0043 (LSM10GXMR4-01), 944-0076 (LSM10GXM4GBT-01), or 944-0077 (LSM10GXMR4GBT-01)]
944-0056 SW-FCoE-OPT2
SW-FCoE-OPT2, Configuration Option, Fibre Channel over Ethernet (FCoE) Option for 2-port NGY, License per module; Supported on Extra Performance, (XP), full-featured and reduced-feature performance load modules; REQUIRES purchase of a supported load module [see 944-0054 (LSM10GXM2S-01), 944-0048 (LSM10GXM2XP-01), 944-0055 (LSM10GXMR2S-01), 944-0049 (LSM10GXMR2-01), 944-0074 (LSM10GXM2GBT-01), or 944-0075 (LSM10GXMR2GBT-01)]
NGY Transceiver options:
NGY offers the following XFP transceiver options:
- 948-0003 XFP-850, Accessory, XFP Transceiver for 10 Gigabit Ethernet LAN/WAN load modules with pluggable XFP interface, 850nm
- XFP-1310 Accessory, XFP Transceiver for 10 Gigabit Ethernet LAN/WAN load modules with pluggable XFP interface, 1310nm
- XFP-1550 Accessory, XFP transceiver for 10 Gigabit Ethernet LAN/WAN load modules with pluggable XFP interface, 1550nm
- 948-0011 XFP-CX4, Accessory, XFP Transceiver for 10 Gigabit Ethernet LAN/WAN load modules, 10GBASE-CX47
NGY SFP+ Transceiver and Direct Attach Cable options:
NGY offers the following SFP+ transceiver and Direct Attach Cable options:
- 948-0013 SFP+10GBASE-SR/SW, Accessory, SFP+ Transceiver for 10 Gigabit Ethernet LAN/WAN load modules with pluggable SFP+ interface, 850nm
- 948-0014 SFP+10GBASE-LR/LW, Accessory, SFP+ Transceiver for 10 Gigabit Ethernet LAN/WAN load modules with pluggable SFP+ interface, 1310nm
- 948-0015 SFP+10GBASE-LRM, Accessory, SFP+ Transceiver for 10 Gigabit Ethernet LAN/WAN load modules with pluggable SFP+ interface, For multimode fiber, 1300nm8
- 948-0016 SFP+10GSFP+Cu, Accessory, passive, Direct Attach Cable Assembly for 10 Gigabit Ethernet LAN/WAN load modules with pluggable SFP+ interface, copper twinaxial, 3 meter length
1All NGY 10GBASE-T load modules with the “-02_ model number suffix require IxOS 6.30EA SP1 as the minimum version: LSM10GXM2GBT-02, (944-0074), LSM10GXMR2GBT-02, (944-0075), LSM10GXM4GBT-02, (944-0076), LSM10GXMR4GBT-02, (944-0077), LSM10GXM8GBT-02, (944-0078), LSM10GXMR8GBT-02, (944-0079.
2 XM12 High Performance chassis (941-0009) is required for 80 or more ports of 10 GbE NGY XFP or SFP+ 8-port, load modules to be installed in a single chassis. A field replaceable power supply upgrade kit (943-0005) is available for the XM12 chassis (941-0002) to convert it to the high-performance version. Up to ten 8-port NGY 10GBASE-T full performance load modules are supported in an XM12 High Performance chassis, and up to eight 8-port NGY 10GBASE-T full performance load modules are supported in a standard XM12 chassis). The XM2 chassis (941-0003) supports up to twelve ports of 10GBASE-T full performance load modules.
3The LSM10GXM8XP/4XP/2XP load modules do not support transceivers that consume more than 2.5 watts of power per port. The LSM10GXM8S/4S/2S load modules do not support transceivers that consume more than 2.0 watts of power per port.
4 The LSM10GXM8XP, LSM10GXM8S, and LSM10GXM8GBT use a high performance 800MHz processor with additional layer 2 cache.
5For 10GBASE-T interfaces on NGY the ppm does change the data rate, but does not change the bit period due to phy chip limitations.
6 When an NGY load module is installed in an XM12 chassis, the maximum operating temperature of the chassis is 35oC (ambient air).
7 The 948-0011 XFP-CX4 transceiver for 10GBASE-CX4 may only be used in every other port of an NGY load module due to mechanical port-to-port centerline layout restrictions in the module faceplate.
8 The 948-0015 SFP+ transceiver for 10GBASE-LRM only supports 10 Gigabit Ethernet in LAN mode.
This material is for informational purposes only and subject to change without notice. It describes Ixia's present plans to develop and make available to its customers certain products, features and capabilities. Ixia is only obligated to provide those deliverables specifically included in a written agreement between Ixia and the customer.
Additional information
| Weight | 9.07184740 lbs |
|---|---|
| Dimensions | 24 × 20 × 6 in |
| Brand | |
| Condition | |
| Condition Description | |
| MPN |
