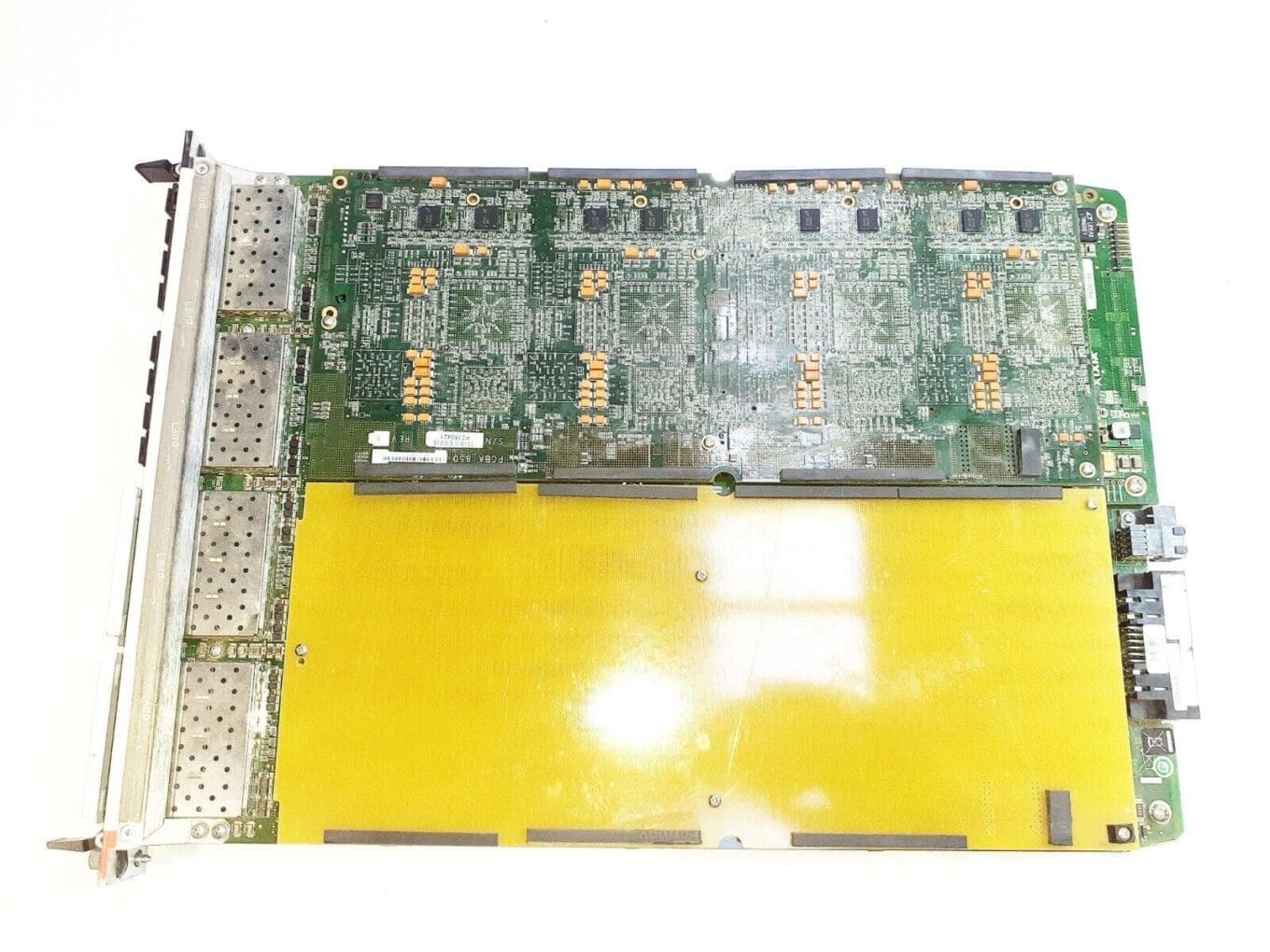

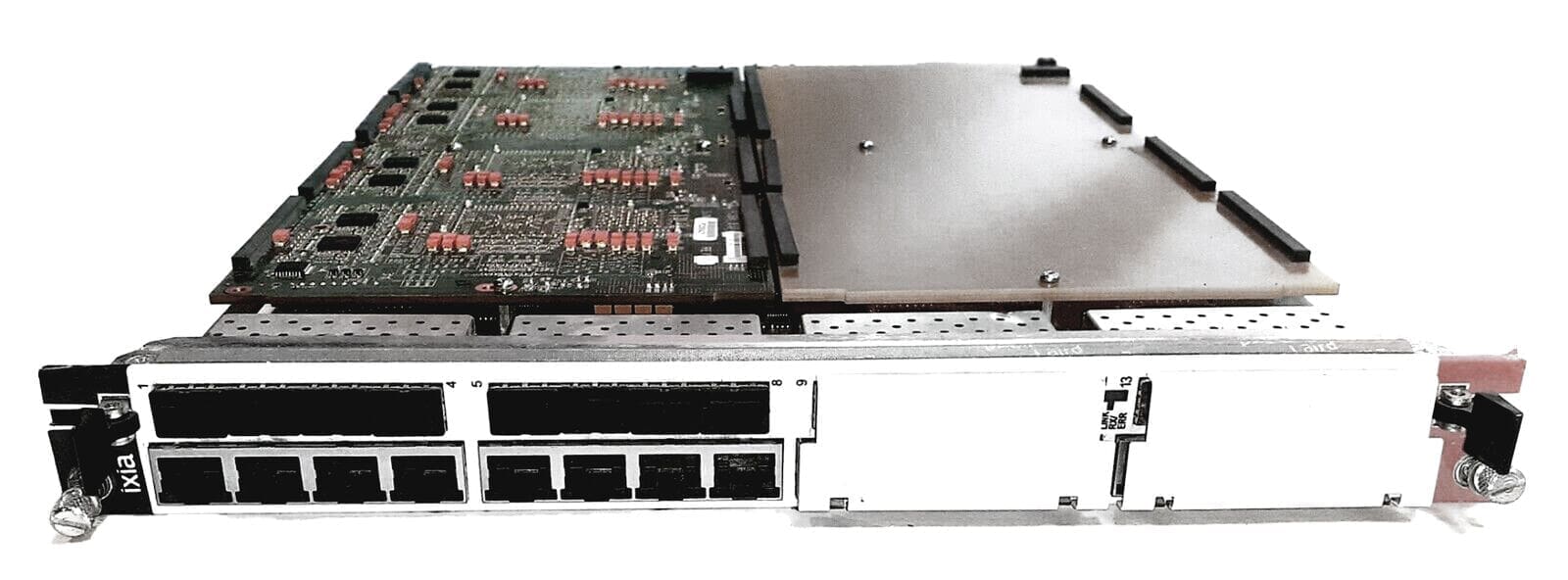

Ixia lsm1000xmvae8 8 Port 10/100/1000 Mbps Automotive Ethernet Load Module

Ixia's XMVAE Gigabit Ethernet Load Modules offer complete Layer 2-3 network and application testing functionality in a single test system for Automotive Ethernet switch and ECU testing. Each test port on the module has auto-negotiable 10/100/1000 Mbps Ethernet over copper as well as Gigabit Fiber and 100Base-FX Ethernet over fiber. The ability to test Automotive Ethernet network components in next generation vehicles and smart cars, requires the Ixia test system to support Automotive Ethernet specific interface for 10/100/1000 Mbps Ethernet speeds. The XMVAE load modules include support for BroadR-Reach transceivers for testing BroadR-Reach enabled Automotive Ethernet switch and ECU functionality. Each port on a 10/100/1000 Mbps XMVAE module contains a powerful RISC processor running Linux and a full, test-optimized TCP/IP stack. This architecture provides unprecedented performance and flexibility for testing BroadR-Reach enabled Automotive switches, ADAS/Infotainment ECUs, gateways and AUTOSAR IP/Ethernet applications for Automotive use. The load module supports wire-speed Layer 2-3 traffic generation and analysis, high performance IPv4/IPv6 protocol emulations, Ethernet ECU behavior emulation and Layer 4-7 application traffic generation on each test port. Extensive statistics for control and data plane traffic helps debug the issues quickly and extensively in a scaled setup consisting of many ECUs, switches and gateways. Ixia's XMVAE Gigabit Ethernet Modules are offered in 8 and 16 port full-performance configurations, providing scalability and affordability for a diverse range of test requirements. With 12 slots per XGS12-SD high performance chassis, up to 96/192 Ethernet ECU ports can be simulated in a single test system to create high density automotive network test environments. In an XGS2-SD or XGS2-HD chassis system, up to 64 ECU ports can be simulated for low scale requirements
