Description

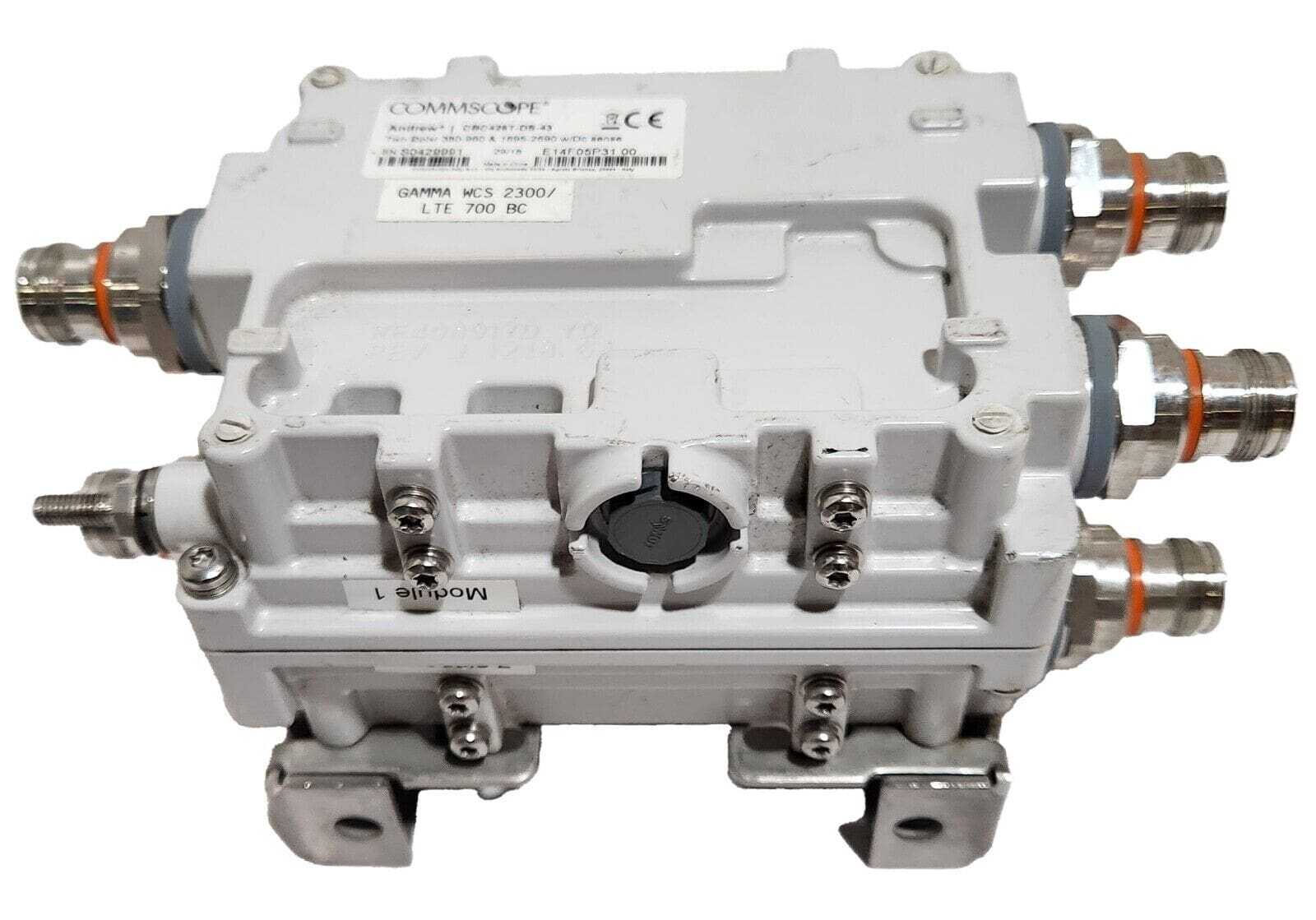

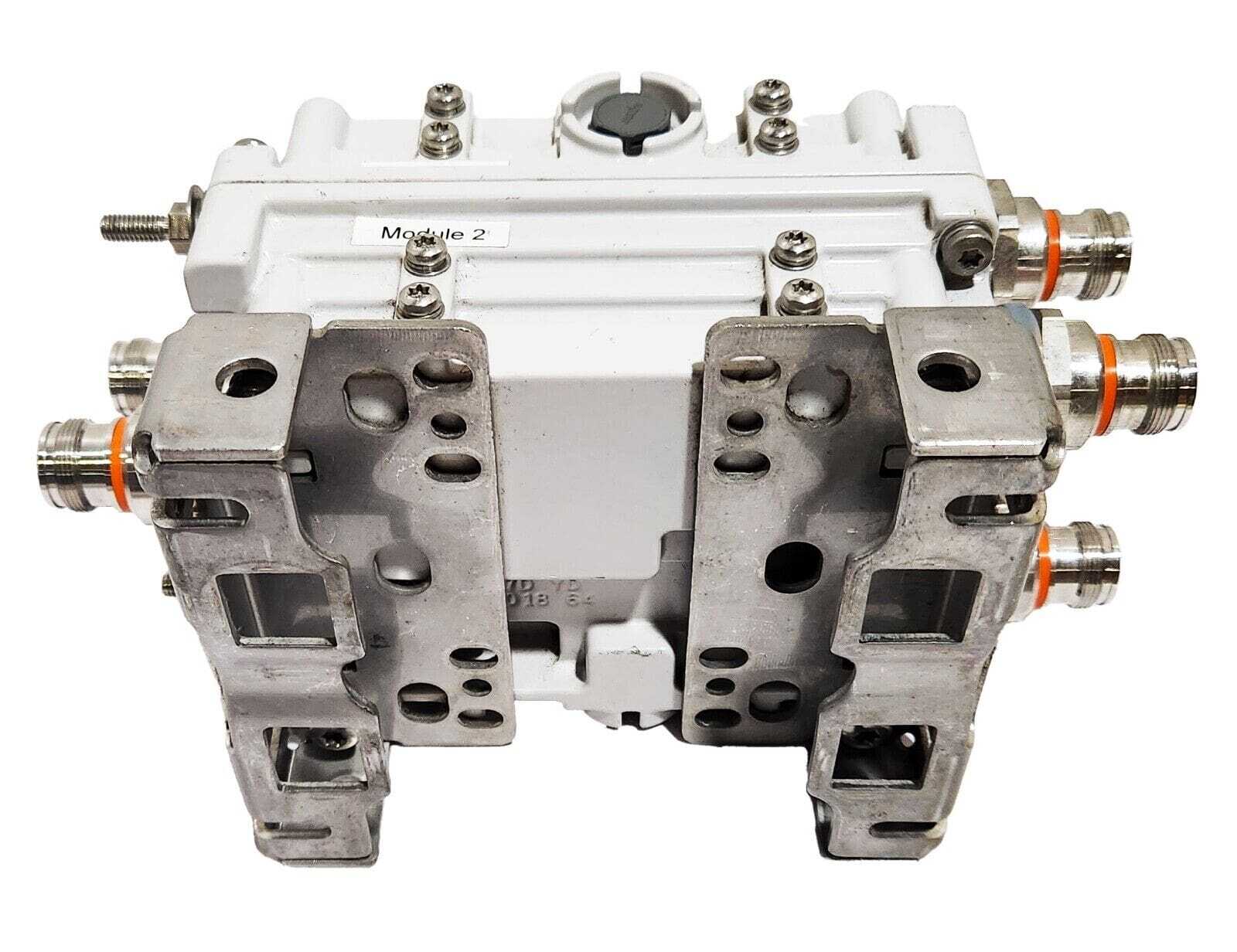

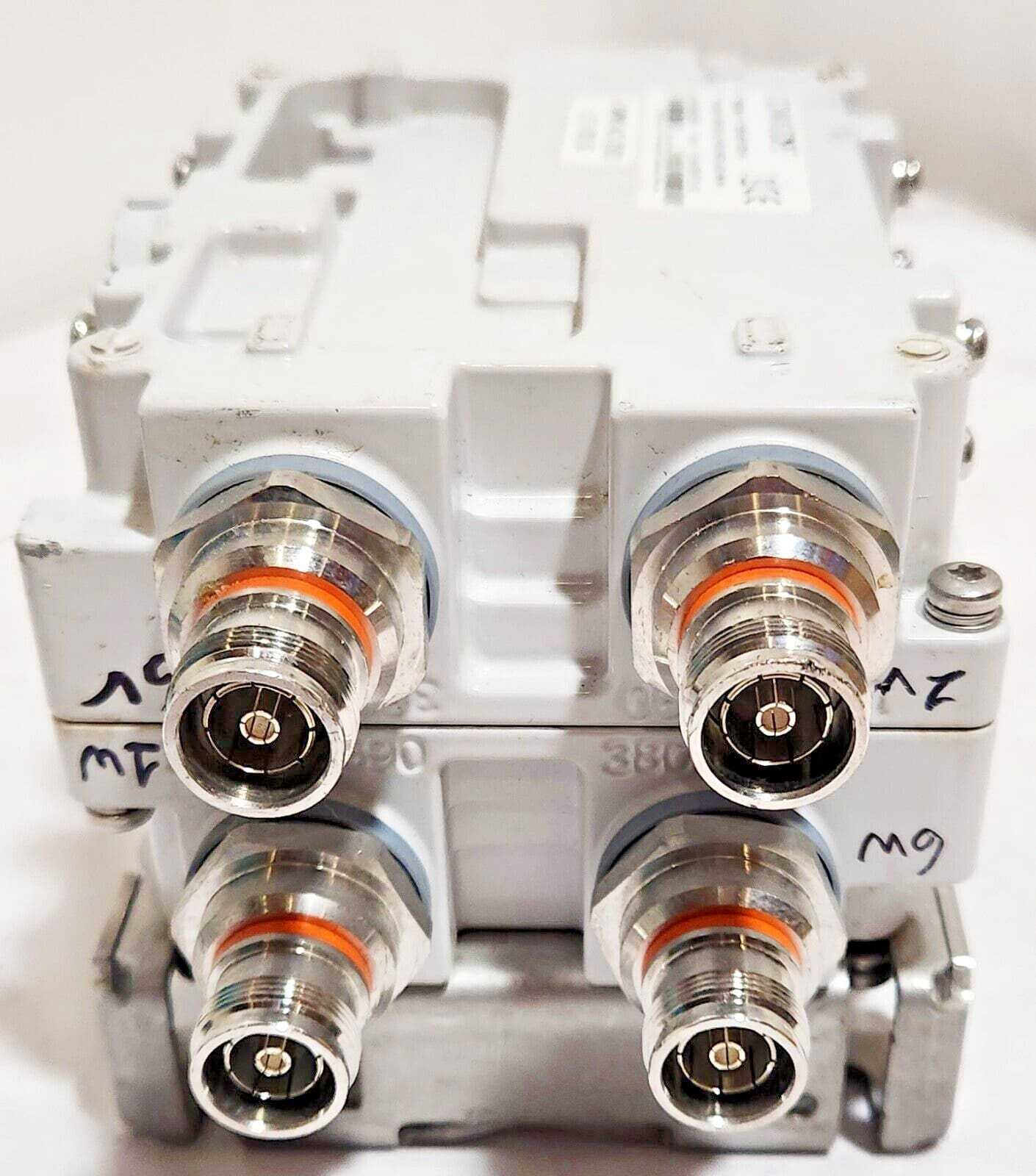

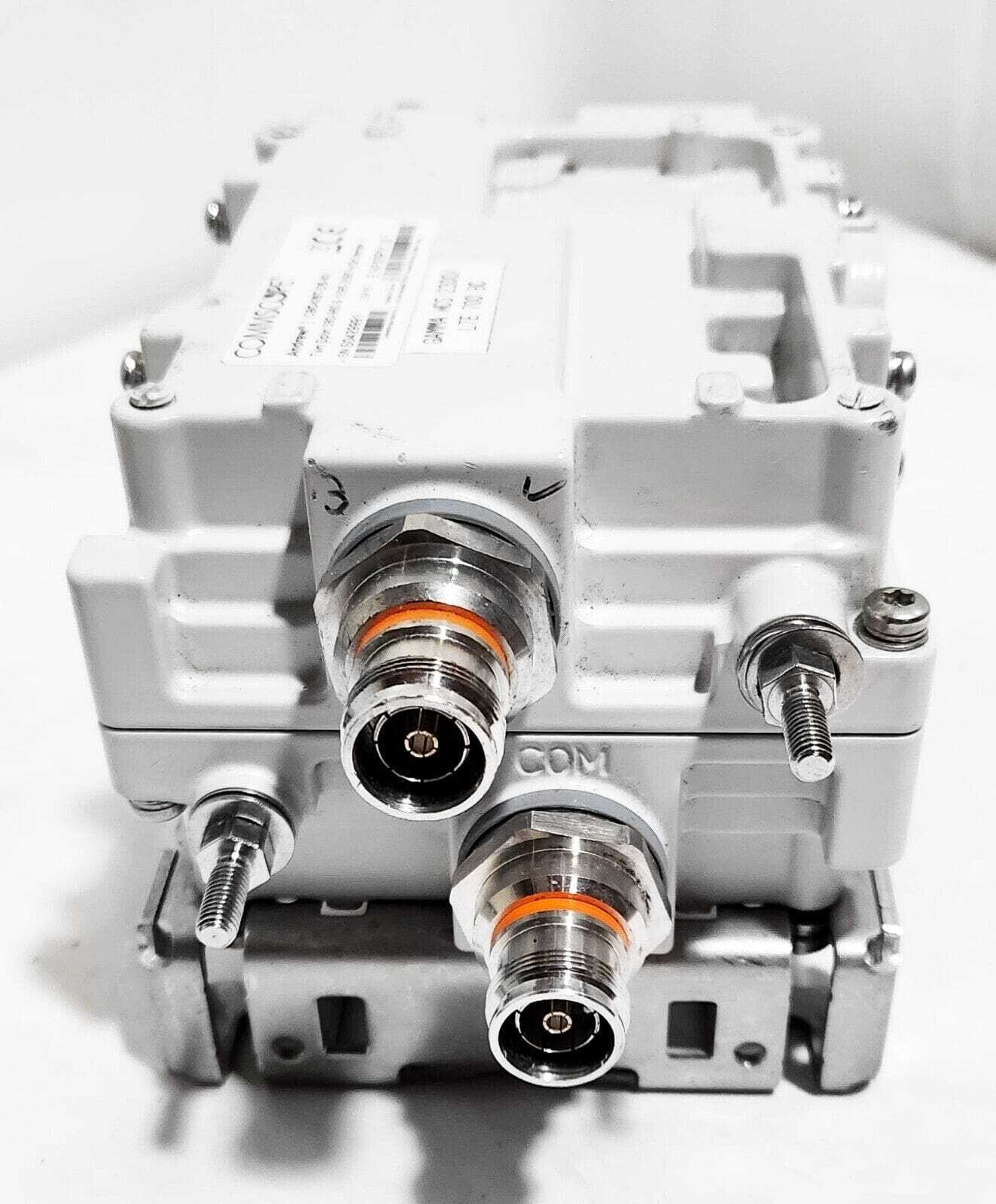

CommScope CBC426T-DS-43 Twin Diplexer 380-960MHz/1695-2690MHz 4.3-10 w/DC Sense
General parameters
- Frequency f1380 to 960 MHz
- Frequency f21695 to 2360 MHz
- Power200 W
- Peak Power2000 W
- Insertion loss0.1 dB
- Insertion loss f10.1 dB
- Insertion loss f20.1 dB
- Frequency380
- Isolation63 to 65 dB
- Isolation f165 dB
- Isolation f263 dB
- PIM-161 dBc
- Return Loss22 to 24 dB
- Return loss f124 dB
- Return loss f222 dB
- Voltage7 to 30 Vdc
- Application TypeCellular
- ApplicationAPT, AWS, CEL, DCS, EDD, IMT, LMR, PCS, TDD, USA, WCS
- Impedance50 Ohms
- Package TypeModule with Connectors
- Connectors7/16 DIN, 7/16 DIN – Female
- Dimension5.984 x 4.764 x 3.425 inch. (H x W x D)
- Weight2.7 Kg
- Operating Temperature-40 to 65 Degree C
- VSWRfilter,diplexer
- NoteSurge Current : 10 kA
Additional information
| Weight | 8 lbs |
|---|---|
| Dimensions | 10 × 6 × 6 in |
| BRAND | CommScope |
| Brand | |
| Condition | |
| Condition Description | |
| COUNTRY/REGION OF MANUFACTURE | China |
| TYPE | Diplexer |
| MODEL | CBC426T-DS-43 |
| MPN | |
| UNIT QUANTITY | 1 |
| UNIT TYPE | Unit |
| UPC | 646444982481 |
