COGNEX DM-303X Machine Vision Camera with Edmunds 16mm f8 Lens 85353

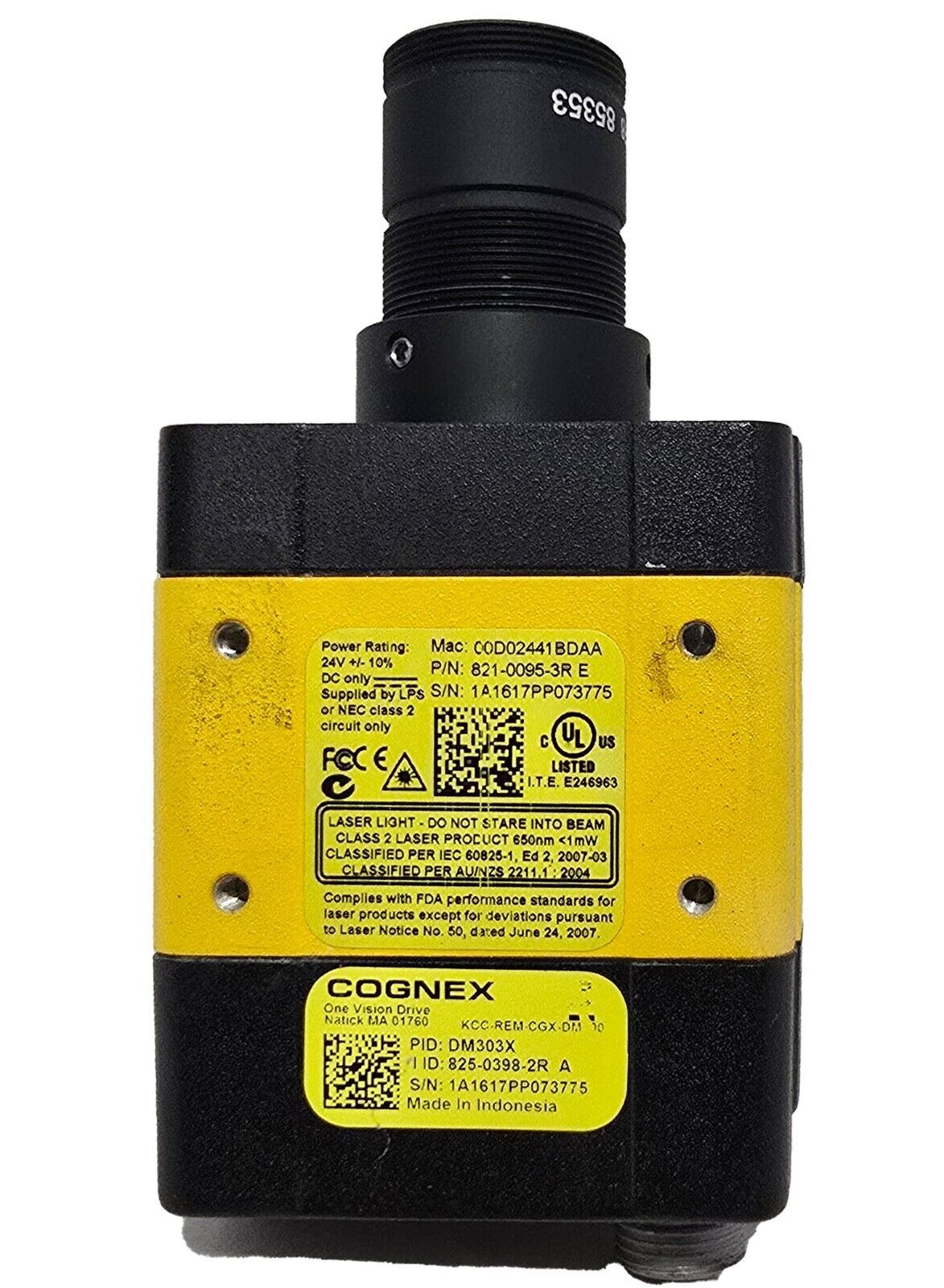

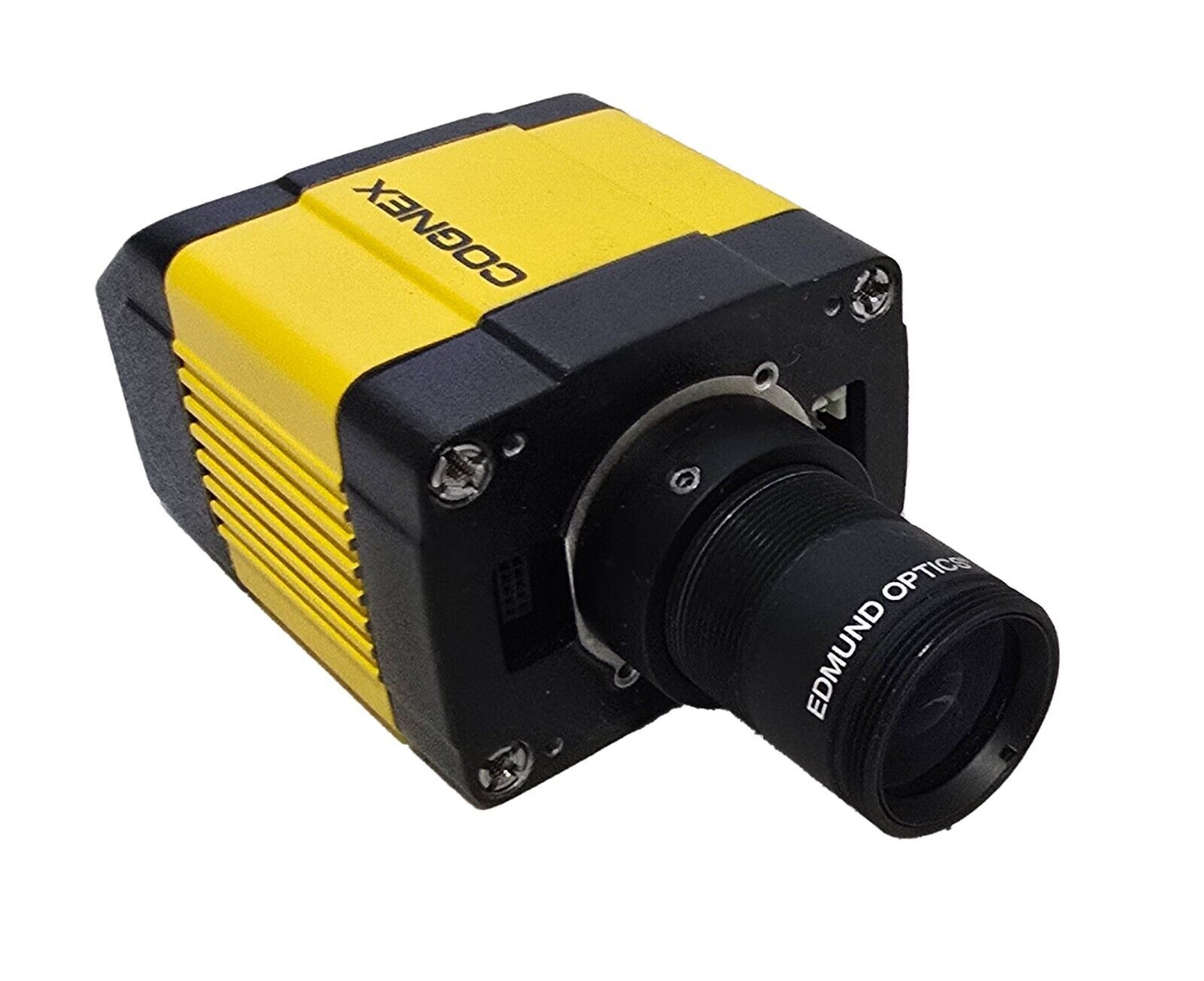

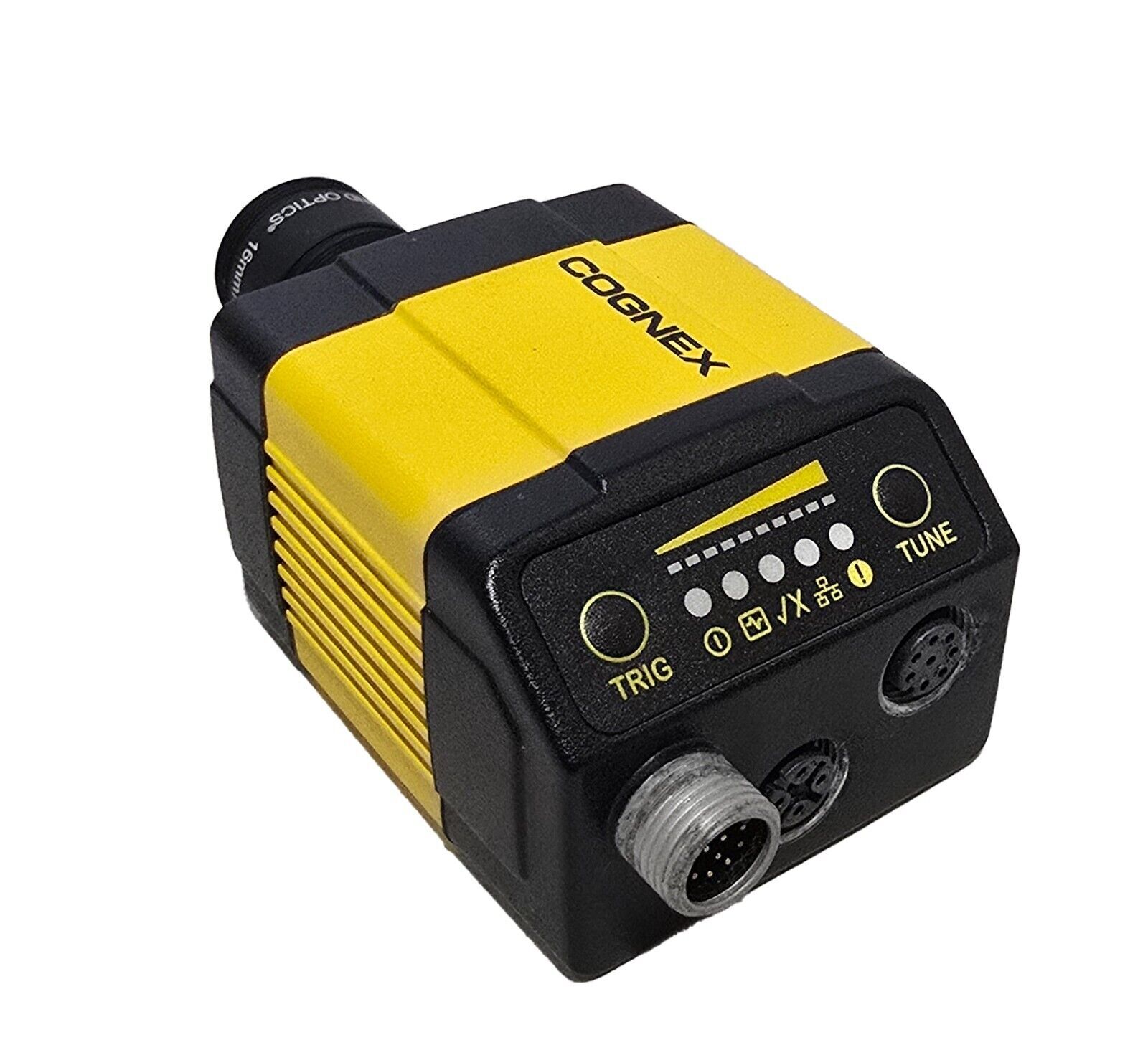

COGNEX DM-303X Machine Vision Camera

• Model: DM303X (Dataman Fixed Mount Barcode Reader)
• Application:
  • Reads both 1D and 2D codes
• Power Supply:
  • 24 VDC
• Image Sensor:
  • 1/1.8″ CMOS
• Resolution:
  • 1600 × 1200 pixels
• Image Acquisition:
  • Up to 40 frames per second at full resolution
• Lens Configuration:
  • Equipped with a 10F5 lens and a liquid lens (for dynamic focusing and enhanced image capture)
• Key Features:
  • Fixed-mount design for industrial environments
  • High-speed image capture for fast-moving targets
  • Optimized for robust barcode reading in challenging conditions

Edmunds 16mm f/8 Lens (Part No. 85353)

• Focal Length:
  • 16 mm
• Aperture:
  • Fixed f/8 for consistent depth-of-field and exposure
• Optical Characteristics:
  • Optimized for machine vision with minimal distortion
  • Standard anti-reflective coatings to enhance image quality
• Compatibility:
  • Custom–matched mount for direct integration with the DM-303X camera
• Field of View & Working Distance:
  • Field of view determined by the sensor size and 16mm focal length (ideal for many industrial imaging applications)
  • Designed for close-range imaging typical in inspection and measurement tasks
